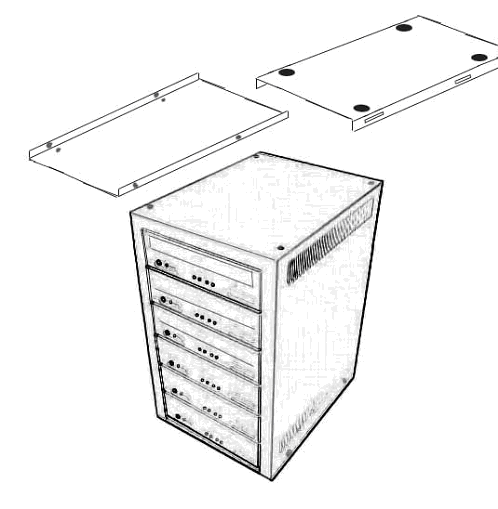

printer stand

Printer stand attachment

The Rimage printer is attached to the top of the drive cube. Attach the mounting plate to the top of the cube using the larger screws provided. The longer end will hang out the back of the loader. The painted piece will then be attached to this bracket using the slotted holes on the edges and attaching it with the smaller screws (these will be used to adjust the positioning of the printer). Plug in the printer to power and hook the gray printer cable to the back of the autoloader. The printer will be adjusted for positioning the same way the drives are in the utilities/loader utilities area of the loader. Instead of opening a drive just open the printer tray and position correctly and then tighten the four screws to hold in place.
