Fusion Manual HTML Format Page 4

LCD Display Screen and Keypad
2.6 - Location of CD-R/RW Recorder Parts and Controls

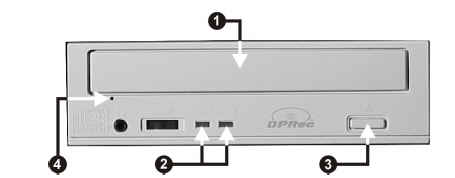

TrueCopy CD-R Drive
Legend (actual drive face may vary)
1) Disc tray - Discs are loaded and removed from this tray. Pressing the eject button will open the tray when the power is switched on to the Fusion. 2) Read and write status LEDs - These indicators light up when the recorder is reading or writing.
3) Eject button - This button is used to open or close the disc tray.
4) Emergency eject pinhole - In the event that the disc tray will not open by pressing the eject button, insert the tip of a large paper clip into this hole and push.
