Shuttleplex CD/DVD Analyzer


Shuttleplex CD/DVD AnalyzerAnalyze CD, CD-R, DVD, DVD-ROM, DVD-R/W and DVD+R/W written or blank media This instrument is designed to provide a fast, accurate, cost effective measure of compact disc quality! It is designed to help bridge the gap between compact disc standards and consumer player compatibility. It provides a relative measure of disc quality at multiple chosen playback speeds to help the user determine product "playability".Validate Written Media Quality on just about any type of optical disc.

The ShuttlePlex CDVD Analyzer can be configured to automatically test, save, report, grade, print and export your optical disc data. The unit is designed to provide an efficient, effective, low cost analysis for just about any optical disc production process. The User interface provides a feature set and graphical environment (See Below) similar to those used by Professional Engineers in a Disc Manufacturing Environment. The Unit was designed with Duplicators, Web Disc, Game Designers, Media Distributors and Archivalists in mind. The ShuttlePlex can be purchased in Several configurations; as a stand alone unit, external laptop drive or integrated into a PC based duplication system.



DVD, DVD+R/W, DVD-R/W Features:
•2XCLV, 2-5X CAV, 3-8X CAV, 5-12X CAV, 6-16X CAV (pressed Media)

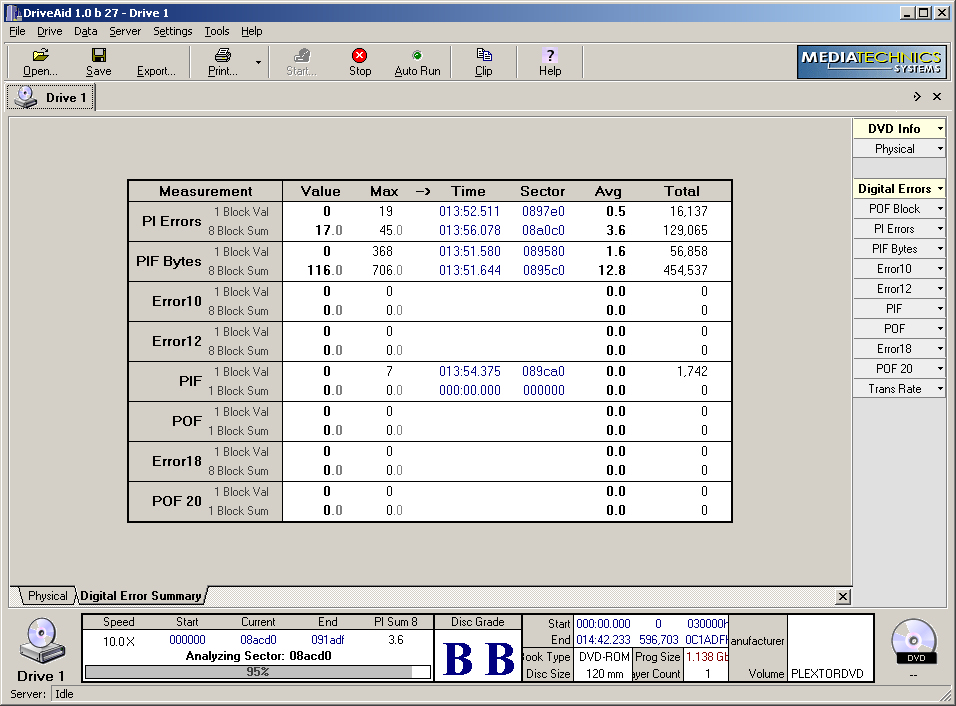

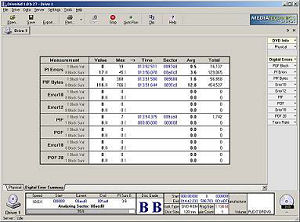

• PI Error
• PI Sum 8 Error
• PI Failures
• PI Byte Failures
• PO Failures
• Highly Accurate Transfer Rate Mapping
• Graphical Presentations in LBA, Sector or Radius

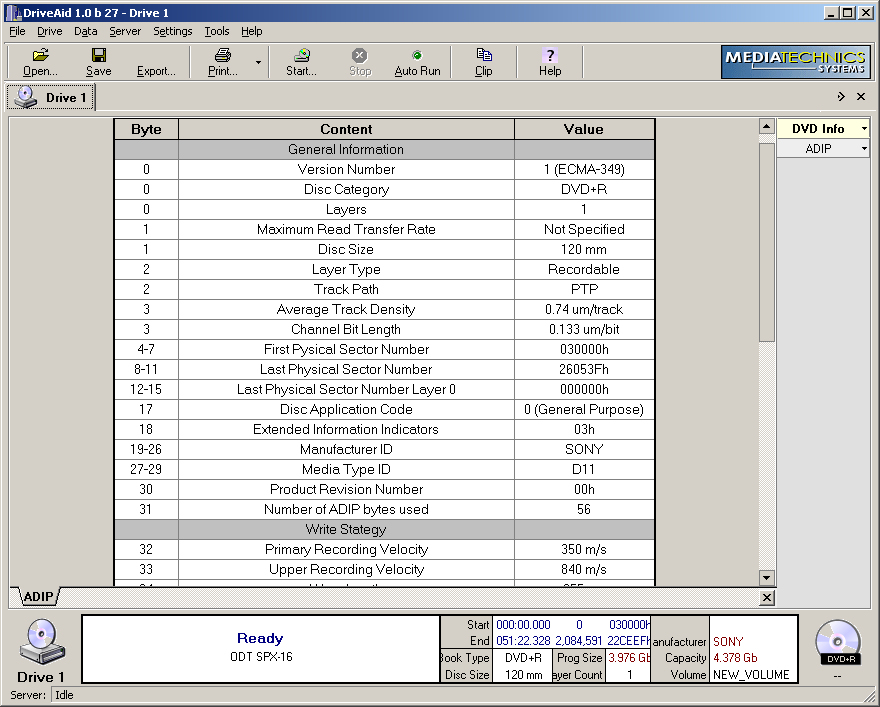

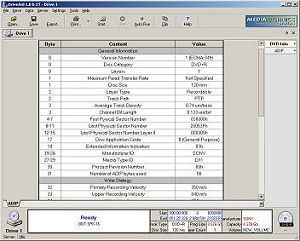

• TOC and Media Manufacturer ID
• DECODED ADIP Field Map for Blank or Written Media (DVD+R/W, DVD-R/W)
• (RAW)
• UDF Information Page
• Programmable AUTO TESTING Setup Routines
• AUTO File Save Routines with adjustable Paths
• AUTO Export to DAP File Format
• AUTO Export to RAW (CSV or TXT)
• AUTO Print Function
• AUTO EJECT
• DATA Logging Feature (Record file)
• Programmable AUTO Naming Routines
• Data Screen Clip/Capture for External Report building
• Programmable Disc Grade Routines with Running and Final Grade Responses
• Digital Error or Raw Screen Printout Format
• Multiple Drive and Firewire Support Options
• Software integrated in the unit

shuttleplex dvd analyzer
shuttleplex dvd analyzer

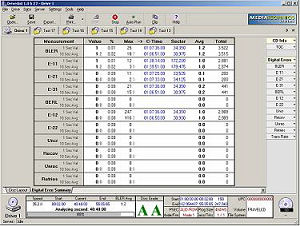

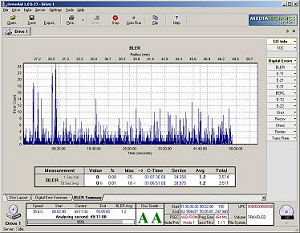

CD, CD-R, CD-RW Features:
• 4X CLV, 8X CLV, 10-24X CAV, 14-32X CAV, 17-40X CAV

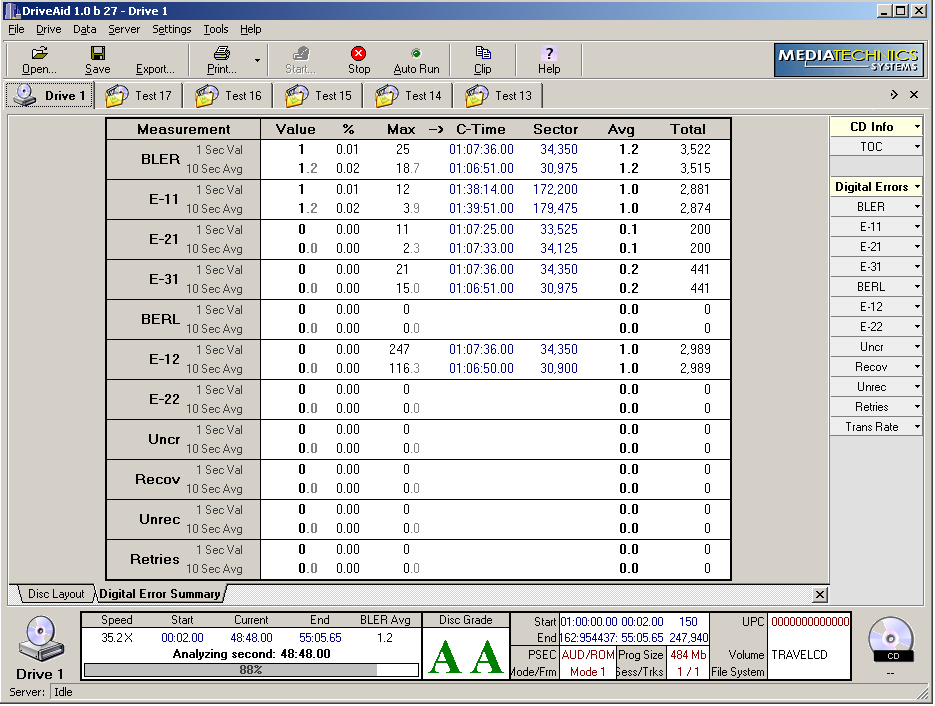

• BLER, E-11, E-21, E-31, BERL, E12, E22,
• Uncorrectables
• Unrecoverables

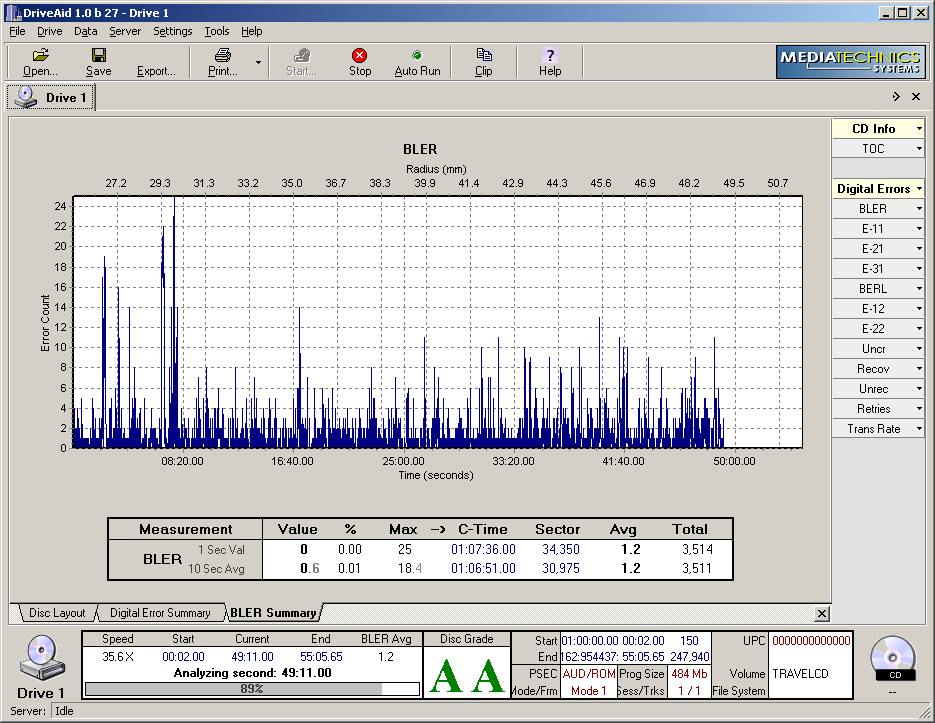

• Graphical Presentations with Adjustable Axis –
• Mapping can be done with A-time, C-time or Sectors
• Programmable Error Radius Routine Super-imposed on Graphs
• Single Stepping MODE
• Programmable Retry MODE – Customized Setup
• RAW and DECODED TOC Field Map
• Mode/Form and SUBCODE Analysis
• Multi-Session Analysis
• UPC Readouts
• ISRC Readouts
• BLANK Media ID
• BLANK Media ID and DECODED ATIP Field Map ( Blank or Written Media)

cd analyzer
cd analyzer

FIREWIRE COMMAND SET (TCP/IP)

Firewire support Option allows the modified drive to be integrated into a duplication system. A simple command set is supported so that the analyzer can be run by an external application.The test run and final results are written to a path chosen by the app or the user.Drive status can also be polled and grade results can be used to determine the status of the disc being tested or the image being processed.


Leasing Info

Download PDF Brochure Here

Download Zipped PDF Operation Manual

Manual / HTML Version
