Shuttle Plex Media Analyzer Manual 19

Post Analysis Options Tab

Post Analysis Options Tab – automated testing options and file saving paths. The are 6 defined operations that can be checked on or off in the Post Analysis Screen.

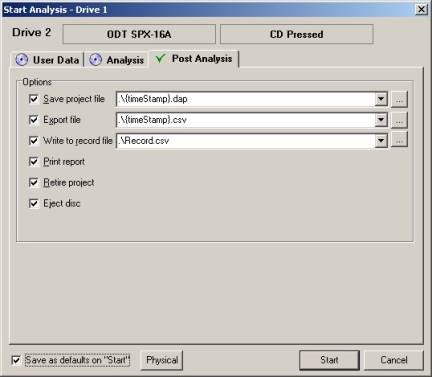

Post Analysis Tab under Startup Screen

Save project file – file name and path for automated save of a project file or *.dap files.

Export analysis data – file and path for export of a Raw data file. This file may be exported in “*.csv or *.txt” format.

Write to Log file – file and path for single line addition of summarized data to a Log file (CSV format).

Print report – pre-formatted report sent to printer automatically on completion of test.
