TC 8000 Duplication Controller

Page 19

________________________________________________________________________________

Drive Select Jumpers

Following are the R?Quest standard drive jumpering rules:

· The drive on the end of the SCSI cable should have a termination jumper installed. No other drives on the same SCSI cable should have a termination jumper.
· All writers on the same SCSI cable must be jumpered with a different drive select address. Address 7 (all 3 address jumpers on) must not be used on any drive.
· No more than four 12X drives or three 16X drives can be on a single SCSI cable.


NOTE:

While other cabling and jumpering configurations that follow the above rules will work, R-Quest only tests with systems jumpered per the following figures. To insure compatibility with future firmware and hardware configurations R-Quest highly recommends that only the jumper configurations in the following figures be used.

TC-8400 4 Writer System Jumpers
See the following figures for R-Quest recommended jumpering for TC-8400 systems: Note that the 3rd connector on each SCSI cable is note used.

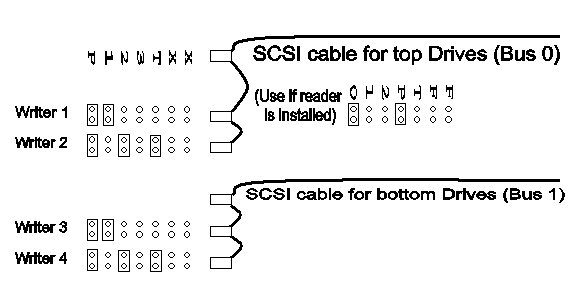

Figure 1 - Plextor PX-R820T, PX-W8220T, PX-W124TS, PX-W1210TS Jumpers


Figure 2 - R-Quest TrueCopy12Stm & TrueCopy16Stm Jumpers
