Mediatechnics Systems
Inc.
TC 8000 Duplication Controller
Page 20
________________________________________________________________________________
Drive
Select Jumpers
TC-8800 8 Writer System Jumpers
See the following figures for examples of R-Quest recommended
jumpering for TC-8800 systems:

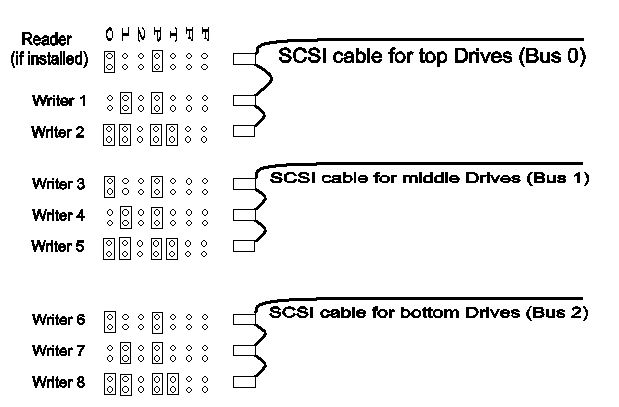

Figure 3 - Plextor PX-R820T, PX-W8220T, PX-W124TS,
PX-W1210TS Jumpers

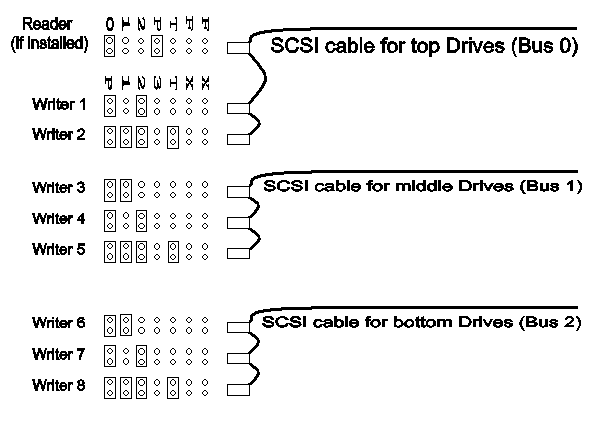

Figure 4 - R-Quest TrueCopy12Stm & TrueCopy16Stm
Jumpers
